Wiring duct,Cable Gland,Cable Tie,Terminals,RCCN

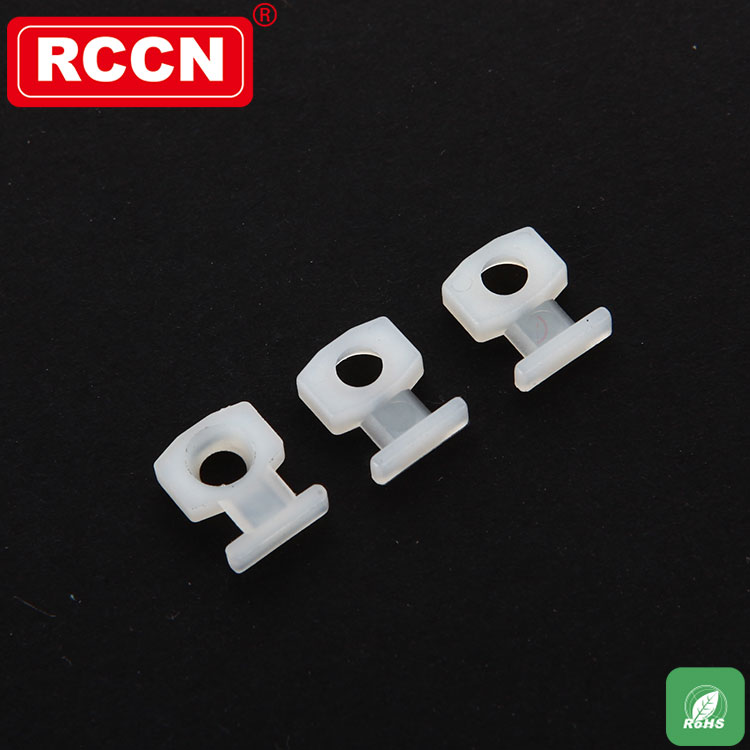

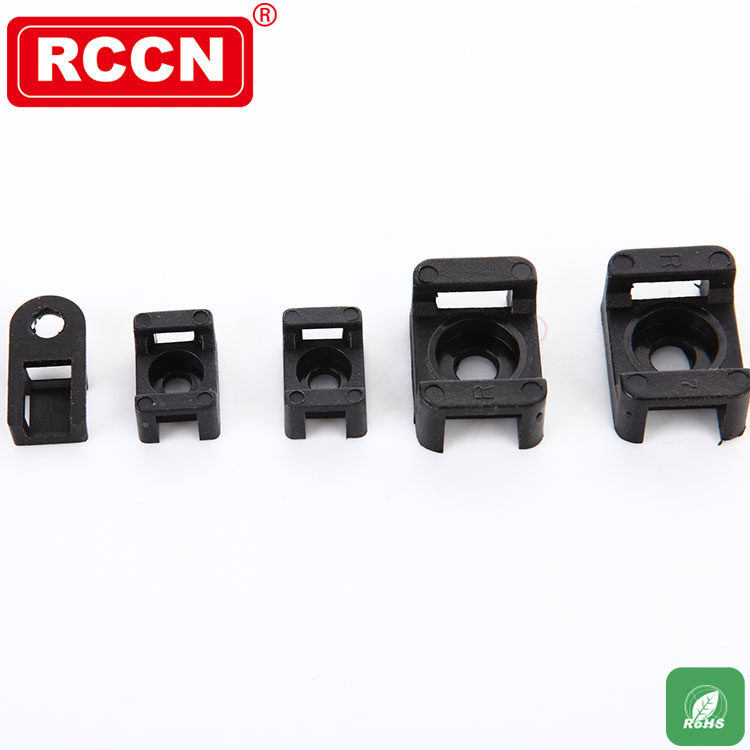

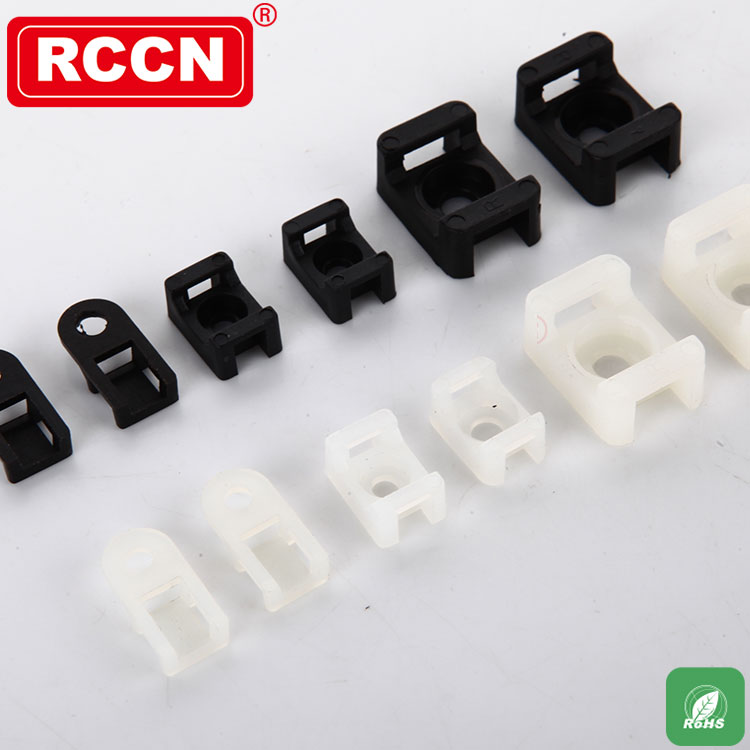

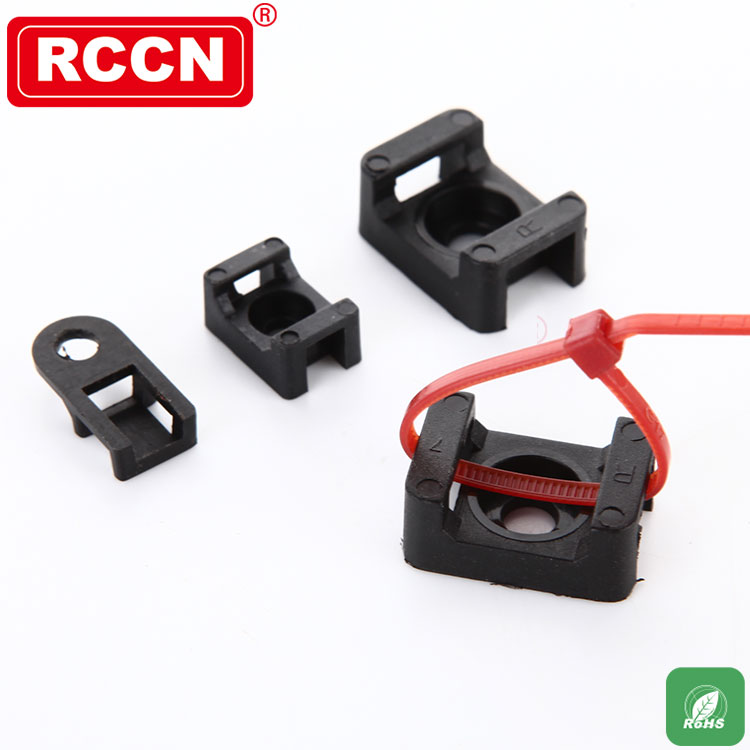

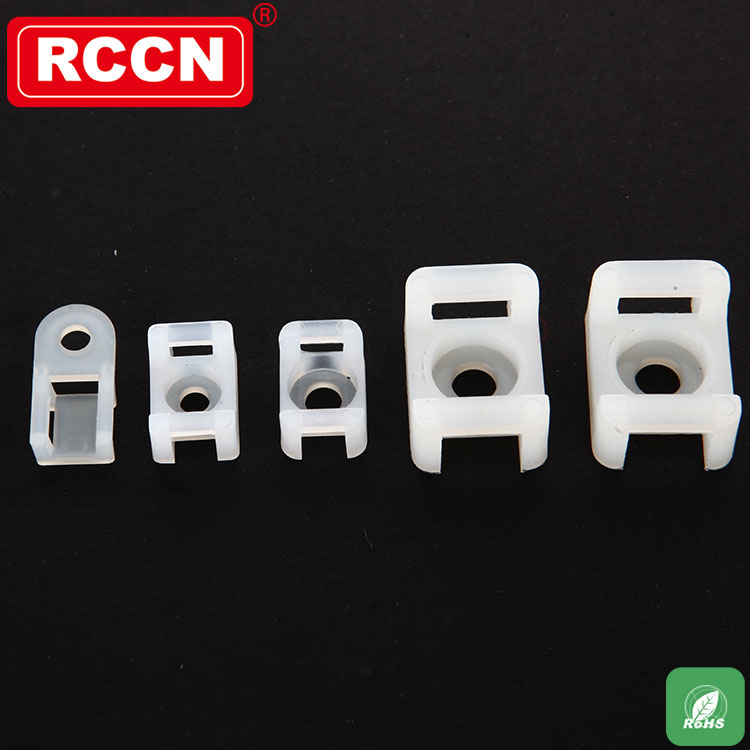

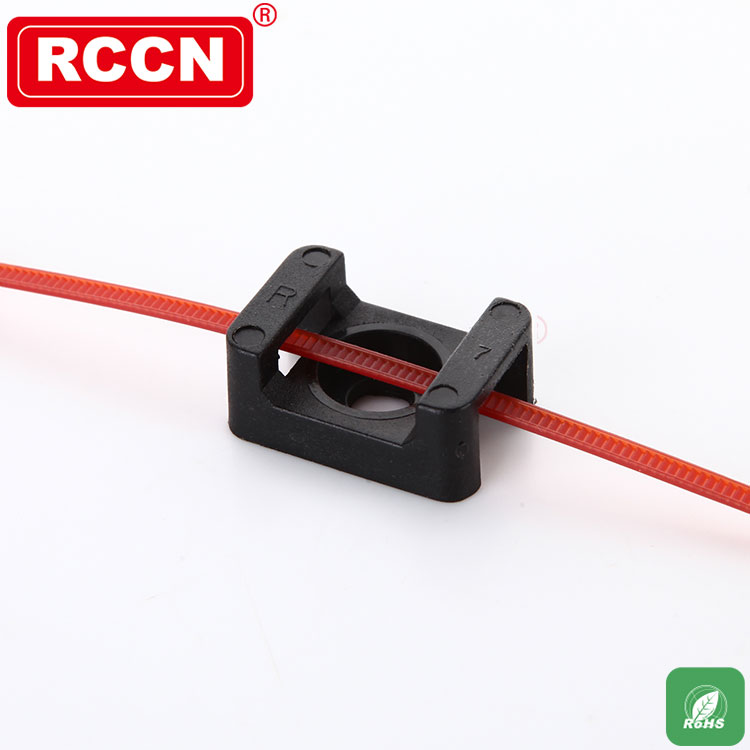

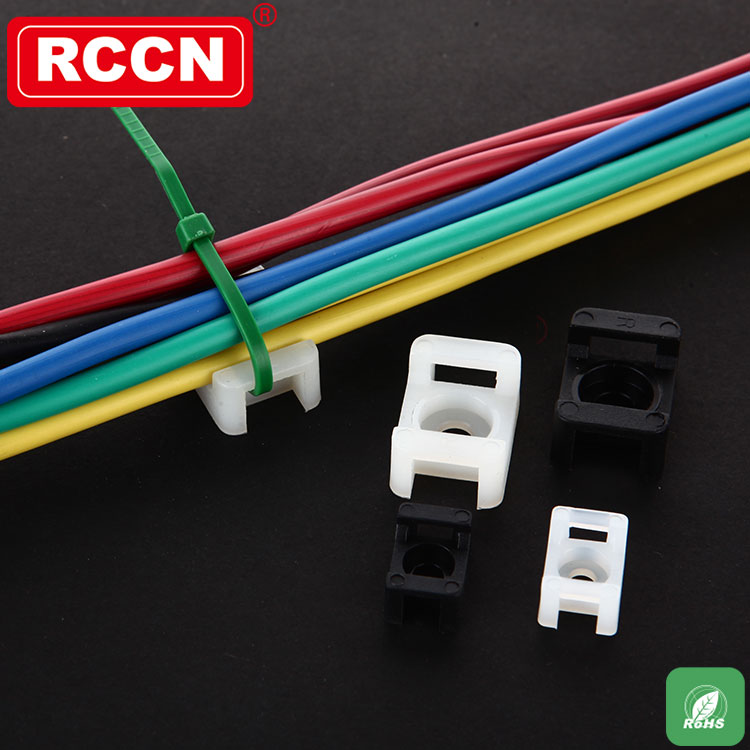

RCCN Cable Clamp HC

Saddle Tie Mounts

Material:UL approved NYLON 66(natural),fireproof 94V-2
Part no. of black:HC-0B,HC-1B,HC-1LB,HC-2B

Specification


Item No Length
L
Width
W
Height
H
Screw
holes
B
Cable tie
with hole
T
Packing
Natural Black
HC-0 HC-0B 19.6 9.5 5 4.5 5.8 100pcs
or
500pcs




HC-1 HC-1B 15.0 10.0 7.0 3.3 5.1
HC-1L HC-1LB 15.0 10.0 7.0 4.5 5.1
HC-2S HC-2SB 23 16 9.8 4.5 9.0
HC-2A HC-2AB 23 16 9.8 6.1 9.0
HC-2 HC-2B 23 16 9.8 5.3 9.0
HC-2L HC-2LB 23 16 9.8 6.5 9.0
HC-3 HC-3B 23 13.8 17.5 9.5 5.3
HC-4 HC-4B 30 14.7 11.6 9.5 5.0
HC-5 HC-5B 21.5 16.0 10.0 7.8 5.8*9.7
HM-0 HM-0B 10.2 8.1 2.5 3.5 2.8
HM-1 HM-1B 18.9 12.7 3.0 4.4 5.0





Item No Length
L
Width
W
Height
H
Screw
holes
B
Cable tie
with hole
T
Packing
Natural V0 Black V0
HC-0V0 HC-0BV0 19.6 9.5 5 4.5 5.8

100pcs
or

500pcs

HC-1V0 HC-1BV0 15.0 10.0 7.0 3.3 5.1
HC-1LV0 HC-1LBV0 15.0 10.0 7.0 4.5 5.1
HC-2V0 HC-2BV0 23 16 9.8 5.3 9.0
HC-2LV0 HC-2LBV0 23 16 9.8 6.5 9.0
